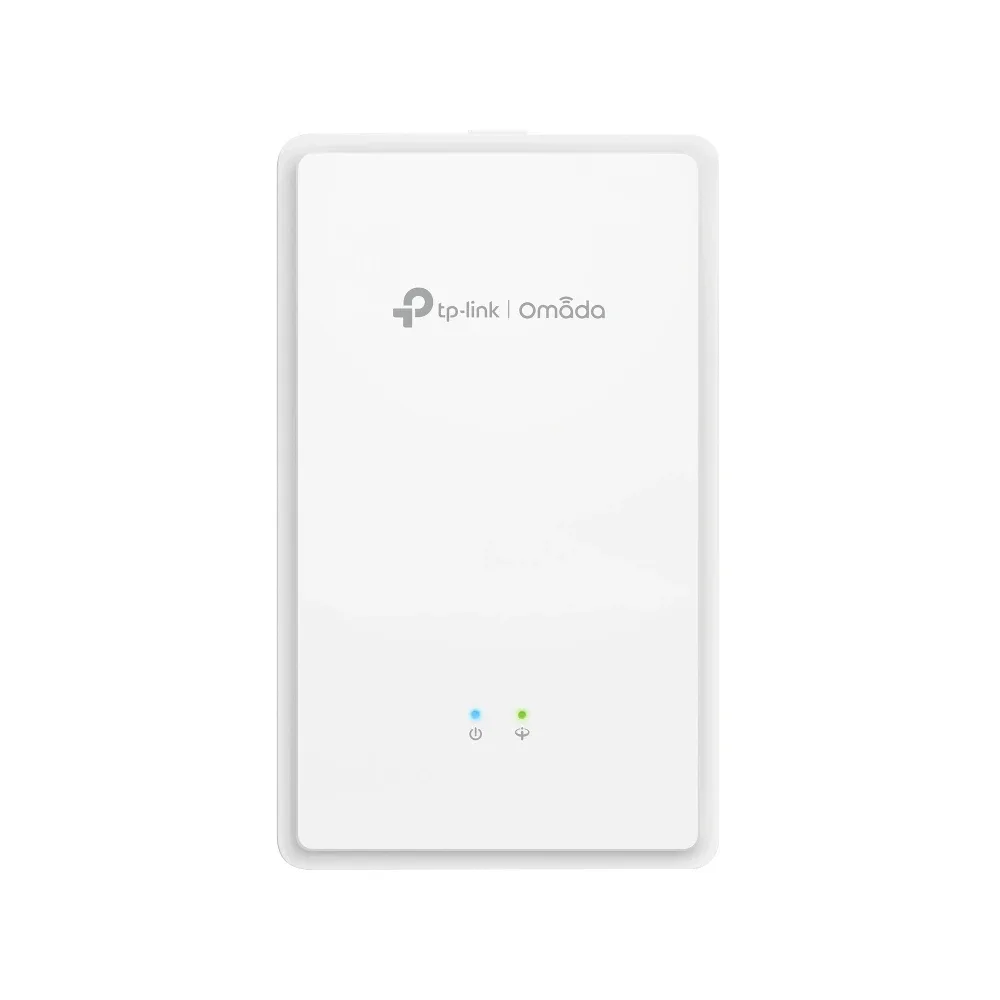

TP-Link Omada EAP615GP-Wall V1 - Radio access point - 4 ports - 1GbE, GPON - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall mountable

Description

Manufacturer Code: EAP615GP-WALL

Overview

TP-Link Omada EAP615GP-Wall V1 - Radio access point - 4 ports - 1GbE, GPON - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall mountable is available through DCS Components. It sits within the Wireless Access Points category.

Key product details

• Radio access point
• 4 ports
• 1GbE, GPON
• Wi-Fi 6
• 2.4 GHz, 5 GHz

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 8885020620535

Specifications

Features

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	120 user(s)
Channel bandwidth	80 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Wi-Fi roaming	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	21 dBm

Security

Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs, SSID broadcast on/off
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes

Management features

Web-based management	Yes
Syslog	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	2

Power

AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.5 A
Power consumption (typical)	12.2 W

Design

Placement	Wall
Product colour	White
Reset button	Yes
LED indicators	Power

Antenna

Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna gain level (max)	6.5 dBi

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS, IC

Weight & dimensions

Width	143 mm
Depth	86 mm
Height	37.6 mm
Weight	320 g

Packaging content

Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Sustainability

Sustainability compliance	Yes
