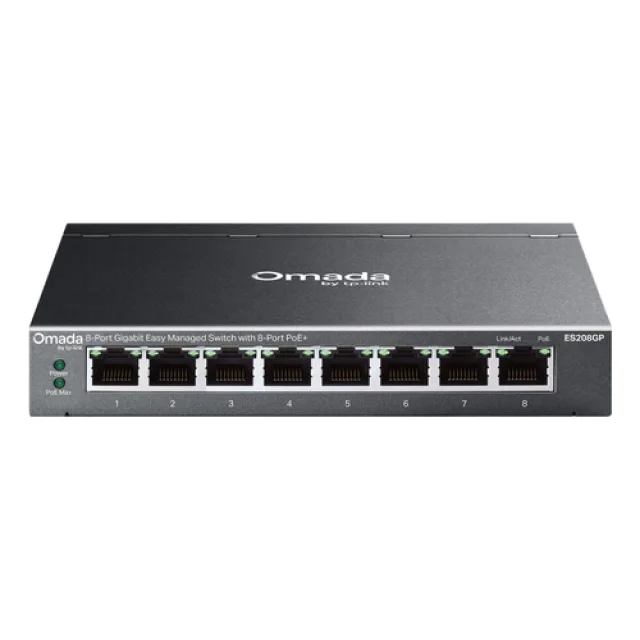

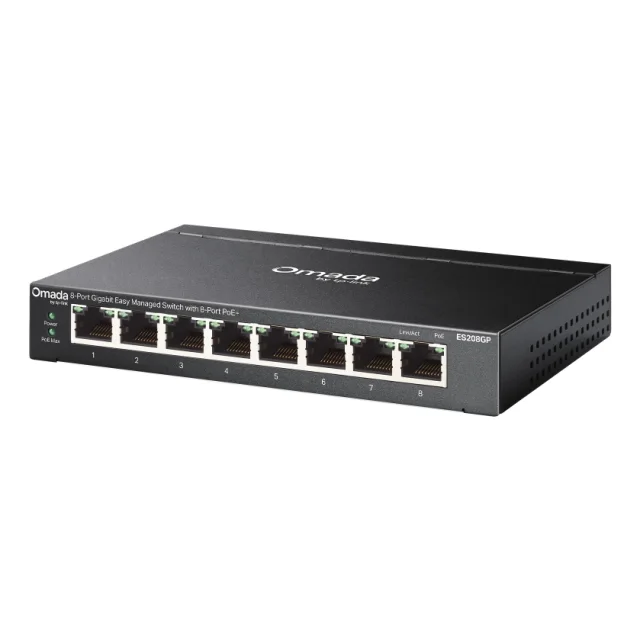

TP-Link Omada ES208GP V1 - Switch - Managed - 8 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (64 W)

Specifications

Management features

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network

Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs	4000

Optical fiber

Transmission distance (max)	0.25 km

Data transmission

Switching capacity	16 Gbit/s
Forwarding rate	11.904 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	0.5 MB

Security

DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes

Multicast features

Multicast support	Yes

Design

Rack mounting	Yes
Form factor	DIN rail
Product colour	Black
LED indicators	Yes

Power

Power source	DC
DC input voltage	53 V
Input current	1.31 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	64 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	158 mm
Depth	100.7 mm
Height	25.4 mm

Packaging content

Cables included	Power
Quick start guide	Yes

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
