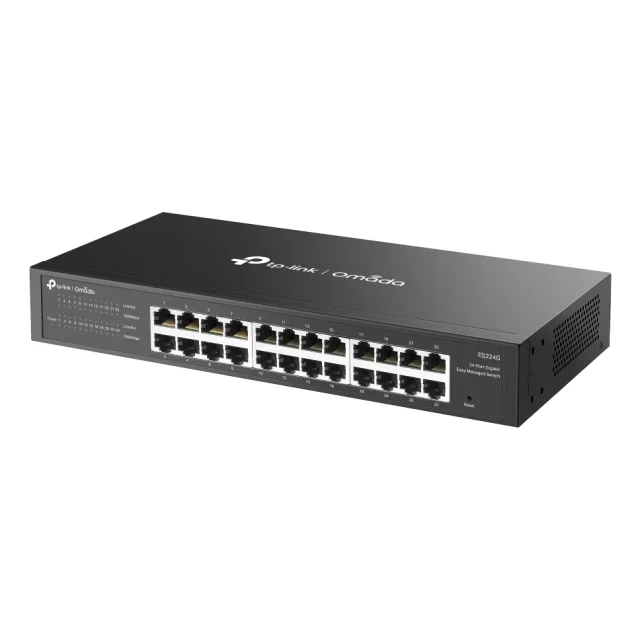

TP-Link Omada ES224G V1.6 - Switch - Managed - 24 x 10/100/1000Base-T - rack-mountable, desktop
MPN ES224G EAN 1210002600712 TP-LINK
Trade customers only
£113.44 ex VAT
£136.13 inc VAT
In stock · 8 available
Manufacturer datasheet →
Trade customers only: orders need a verified business account. Prices ex VAT; VAT is added at checkout.
Quote-led: a person reviews pricing and stock before you commit.
Genuine stock with the manufacturer warranty intact.
Structured returns with credit notes when something is wrong.
Questions? 01224 600337 — Aberdeen & across the UK.
Fresh data: stock and pricing updated 5 Nov 2026.
Description
Manufacturer Code: ES224G
Overview
TP-Link Omada ES224G V1.6 - Switch - Managed - 24 x 10/100/1000Base-T - rack-mountable, desktop is available through DCS Components. It sits within the Managed Switches category.
Key product details
- Switch
- Managed
- 24 x 10/100/1000Base-T
- rack-mountable, desktop
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 1210002600712
Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Unified static configuration | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Port mirroring | Yes |
|---|---|
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Number of VLANs | 32 |
| Switching capacity | 48 Gbit/s |
|---|---|
| Forwarding rate | 35.7 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast support | Yes |
|---|
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| Firmware upgradeable | Yes |
|---|---|
| Fanless | Yes |
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 294 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
| Cables included | AC |
|---|---|
| User guide | Yes |
| Rack mount kit | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
