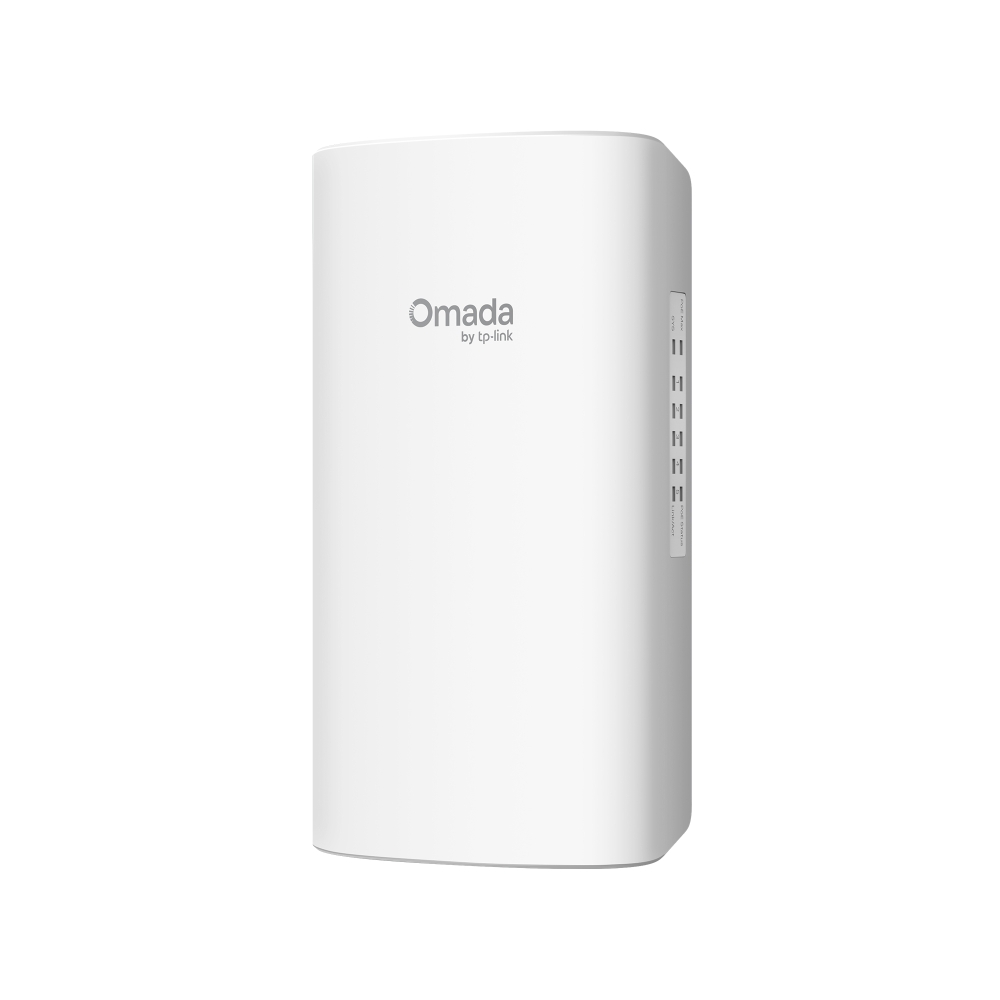

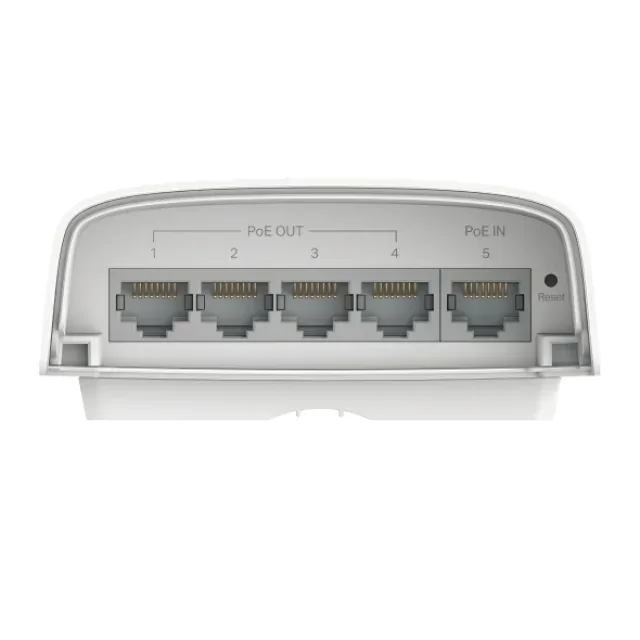

TP-Link Omada SG2005P-PD V1.6 - Switch - smart - 1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) - pole-mountable, wall-mountable - PoE++ (64 W)

Description

Manufacturer Code: SG2005P-PD

Overview

TP-Link Omada SG2005P-PD V1.6 - Switch - smart - 1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) - pole-mountable, wall-mountable - PoE++ (64 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• smart
• 1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+)
• pole-mountable, wall-mountable
• PoE++ (64 W)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4897098689332

Specifications

Management features

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
MIB support	Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	4

Network

Networking standards	IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
IPv4 routes	32
IPv6 routes	32
VLAN support	Yes
Virtual LAN features	Voice VLAN
Number of VLANs	4000

Data transmission

Switching capacity	10 Gbit/s
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	9
Packet forwarding rate (1 Gbps)	7440 pps
Packet buffer memory	4.1 MB

Security

DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
Access Control List (ACL) IPv4 entries	32
IGMP snooping	Yes
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Password protection	Yes

Multicast features

Multicast support	Yes
Multicast MAC address table	8000 entries
IPv4 multicast entries	511
IPv6 multicast entries	511

Protocols

IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert

Design

Rack mounting	No
Stackable	No
Form factor	Desktop
Product colour	White
LED indicators	Yes

Power

Power source	DC/PoE
Power supply included	Yes
Power consumption (typical)	71.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	64 W

Operational conditions

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	243.99 BTU/h

Weight & dimensions

Width	170 mm
Depth	100 mm
Height	38.5 mm

Sustainability

Sustainability compliance	Yes

Certificates

Compliance certificates	CE, RoHS
