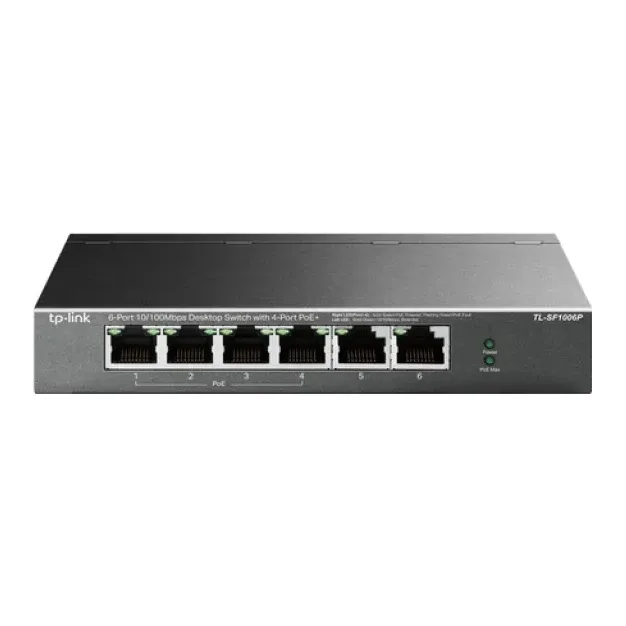

TP-Link TL-SF1006P - V1 - switch - unmanaged - 6 x 10/100 (4 PoE+) - desktop, wall-mountable - PoE+ (67 W)

Description

Manufacturer Code: TL-SF1006P

Overview

TP-Link TL-SF1006P - V1 - switch - unmanaged - 6 x 10/100 (4 PoE+) - desktop, wall-mountable - PoE+ (67 W) is available through DCS Components. It sits within the Hubs & Switches category.

Key product details

• V1
• switch
• unmanaged
• 6 x 10/100 (4 PoE+)
• desktop, wall-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002616324

Specifications

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)

Network

Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes

Data transmission

Switching capacity	1.2 Gbit/s
Forwarding rate	0.8928 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	2000

Design

Rack mounting	No
Stackable	No
Product colour	Black
Housing material	Metal
LED indicators	Yes

Performance

Fanless	Yes

Power

Power source	DC/PoE
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	74 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	67 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	252.34 BTU/h

Weight & dimensions

Width	158 mm
Depth	101 mm
Height	25 mm

Packaging content

User guide	Yes

Packaging data

AC adapter included	Yes
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	870 g

Sustainability

Sustainability compliance	Yes

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, CE, RoHS

Logistics data

Harmonized System (HS) code	85176990
