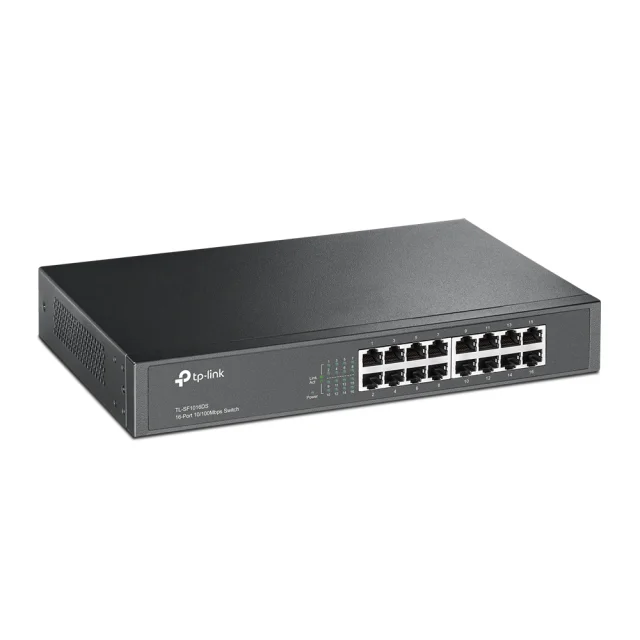

TP-Link TL-SF1016DS 16 p 10/100M Switch, 13 inch rack-mount

Description

Manufacturer Code: TL-SF1016DS

Overview

TP-Link TL-SF1016DS 16 p 10/100M Switch, 13 inch rack-mount is available through DCS Components. It sits within the Hubs & Switches category.

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002616461

Key product details

• Manufacturer code: TL-SF1016DS
• Category: Hubs & Switches
• EAN: 1210002616461

Specifications

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	16

Network

Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto-negotiation	Yes

Data transmission

Switching capacity	3.2 Gbit/s
Throughput	2.38 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	2 MB

Security

Static port security	Yes

Protocols

Supported network protocols	TCP/IP

Design

Rack mounting	Yes
Stackable	No
Form factor	1U
Product colour	Black
Housing material	Metal
Redundant fans support	Yes
Number of fans	0 fan(s)

Performance

Fanless	Yes

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	2.06 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.03 BTU/h

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
User guide	Yes
Rack mount kit	Yes

Packaging data

Rubber feet	Yes
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	1.95 kg

Sustainability

Sustainability compliance	Yes

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, RoHS
