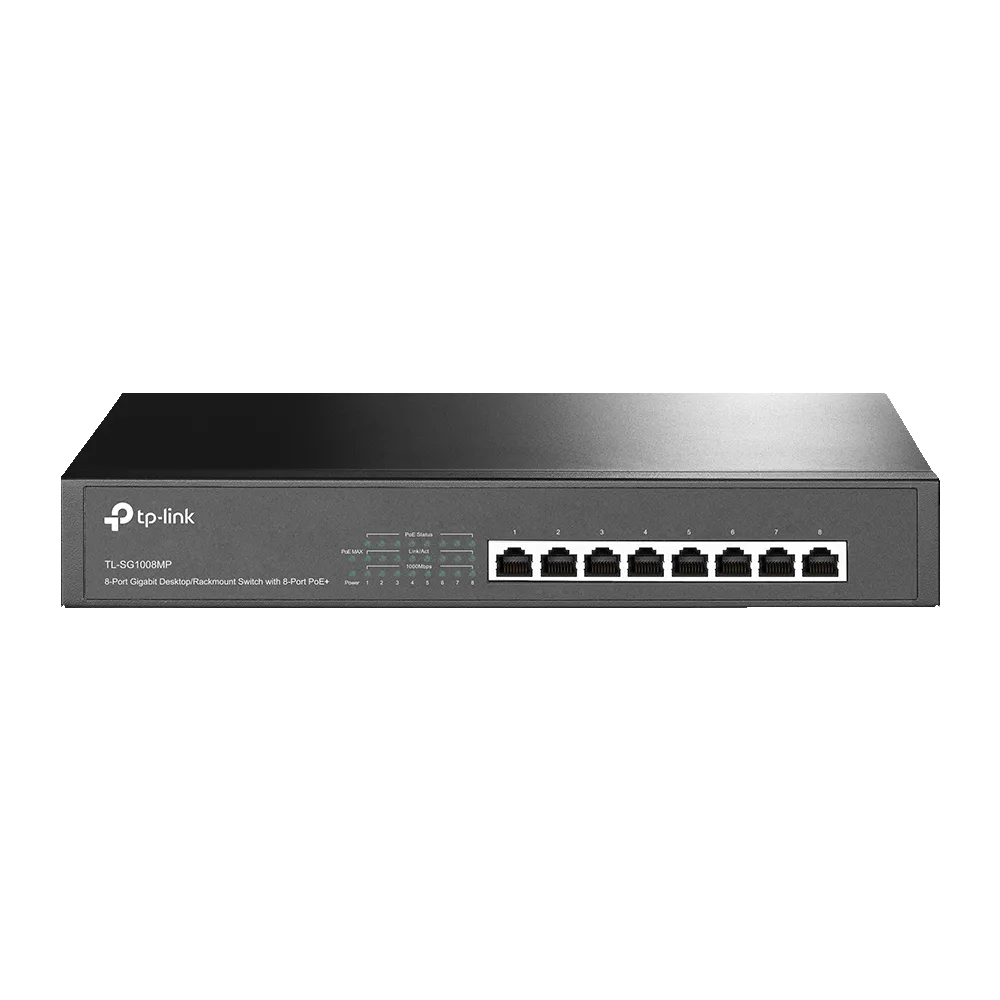

TP-Link TL-SG1008MP - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+ (126 W)

Description

Manufacturer Code: TL-SG1008MP

Overview

TP-Link TL-SG1008MP - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+ (126 W) is available through DCS Components. It sits within the Hubs & Switches category.

Key product details

• Switch
• unmanaged
• 8 x 10/100/1000 (PoE+)
• desktop, rack-mountable
• PoE+ (126 W)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002616683

Specifications

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network

Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

Switching capacity	16 Gbit/s
MAC address table	4000 entries
Store-and-forward	Yes
Packet buffer memory	1.5 MB

Design

Rack mounting	Yes
Product colour	Black
Number of fans	1 fan(s)

Performance

Mean time between failures (MTBF)	1 h
MTBF (PoE)	1 h
Commodity Classification Automated Tracking System (CCATS)	11
Minimum system requirements	1

Power

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140.1 W
Power consumption (max)	144.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	492.6 BTU/h

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
User guide	Yes
Rack mount kit	Yes

Technical details

Shipping (inner) case height	1 mm
Shipping (inner) case width	1 mm
Shipping (inner) case length	1 mm
Shipping (inner) case net weight	1 g
Products per shipping (inner) case	1 pc(s)
Master (outer) cases per pallet layer	1 pc(s)
Layers per pallet (air)	1 pc(s)
Layers per pallet (sea)	1 pc(s)
Pallet gross weight (air)	1 g
Master (outer) cases per pallet (air)	11 pc(s)
Products per pallet (air)	1 pc(s)
Pallet gross length	1 mm
Pallet gross width	1 mm
Pallet height (air)	1 mm
Pallet gross weight (sea)	1 g
Master (outer) cases per pallet (sea)	1 pc(s)
Products per pallet (sea)	11 pc(s)
Pallet height (sea)	1 mm
Shipping (inner) case gross weight	1 g

Certificates

Certification	FCC, CE, RoHS

Logistics data

Harmonized System (HS) code	85176990
