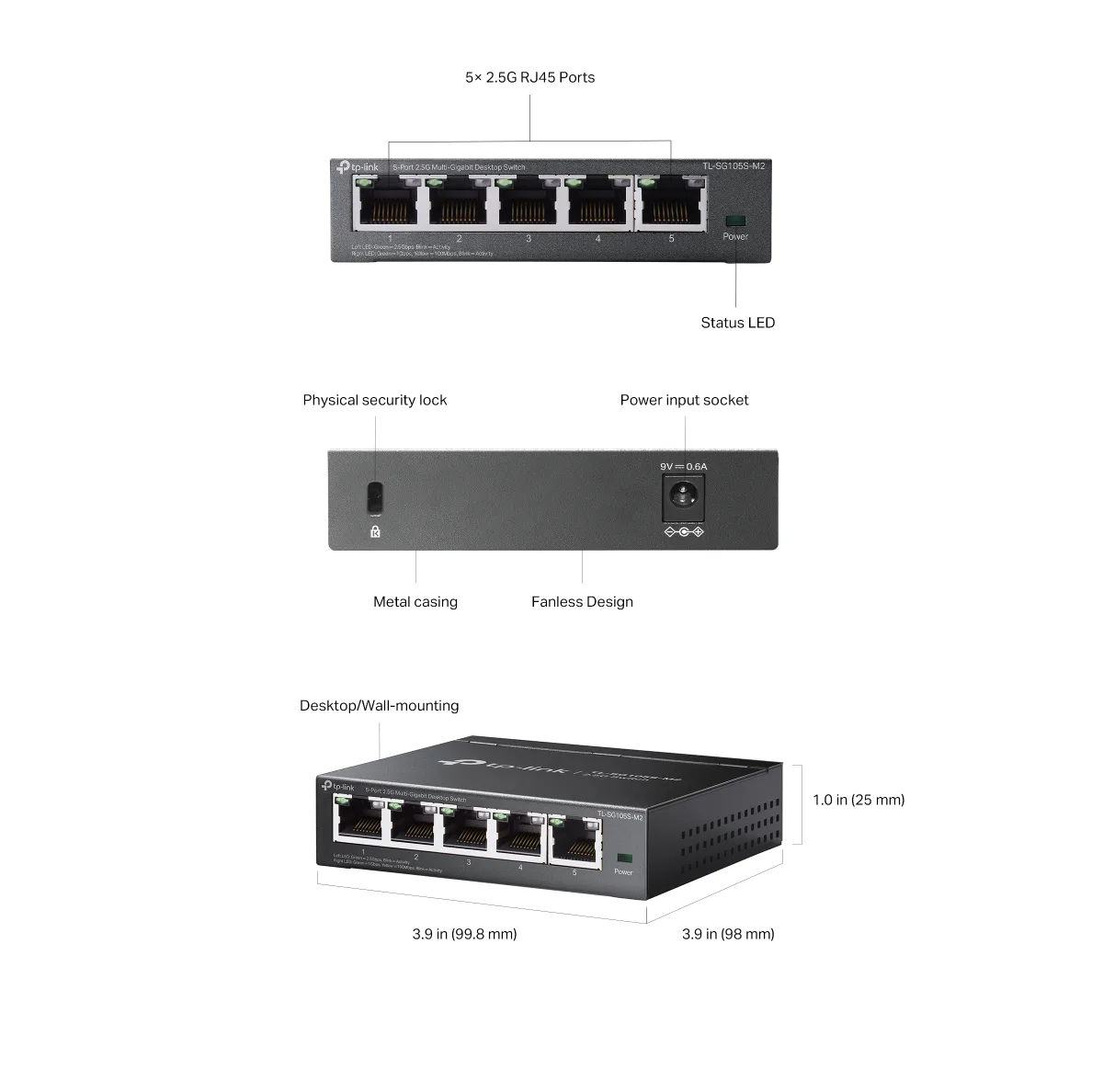

TP-Link TL-SG105S-M2 V1 - Switch - 5 x 10/100/1000/2.5G - desktop

Description

Manufacturer Code: TL-SG105S-M2

Overview

TP-Link TL-SG105S-M2 V1 - Switch - 5 x 10/100/1000/2.5G - desktop is available through DCS Components. It sits within the Hubs & Switches category.

Key product details

• Switch
• 5 x 10/100/1000/2.5G
• desktop

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4895252505139

Specifications

Management features

Switch type	Managed
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)

Network

Networking standards	IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support	No
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

Switching capacity	25 Gbit/s
Forwarding rate	18.6 Mpps
MAC address table	4000 entries
Jumbo frames support	Yes

Security

IGMP snooping	Yes

Design

Product colour	Black
Housing material	Metal
LED indicators	Link, Power
Wall mountable	Yes

Performance

Fanless	Yes

Power

Power source	DC
Power supply included	Yes
DC input voltage	9 V
Input current	0.6 A
Power consumption (max)	5.81 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	19.754 BTU/h

Weight & dimensions

Width	99.8 mm
Depth	98 mm
Height	25 mm

Packaging content

Quick start guide	Yes

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
