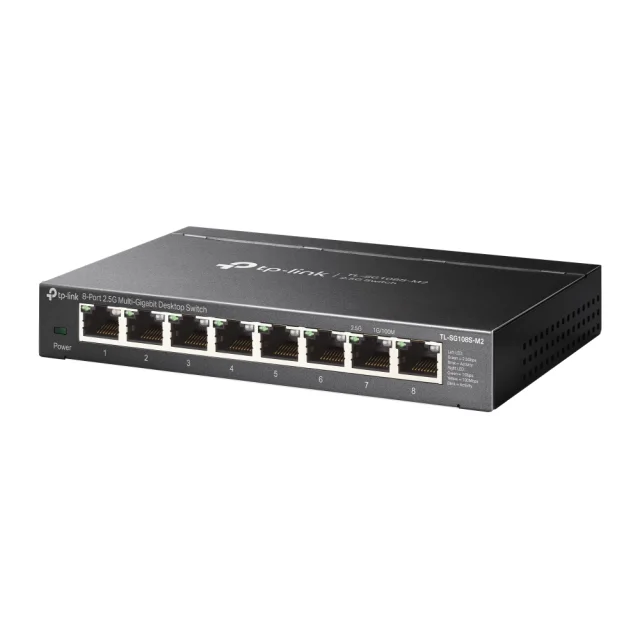

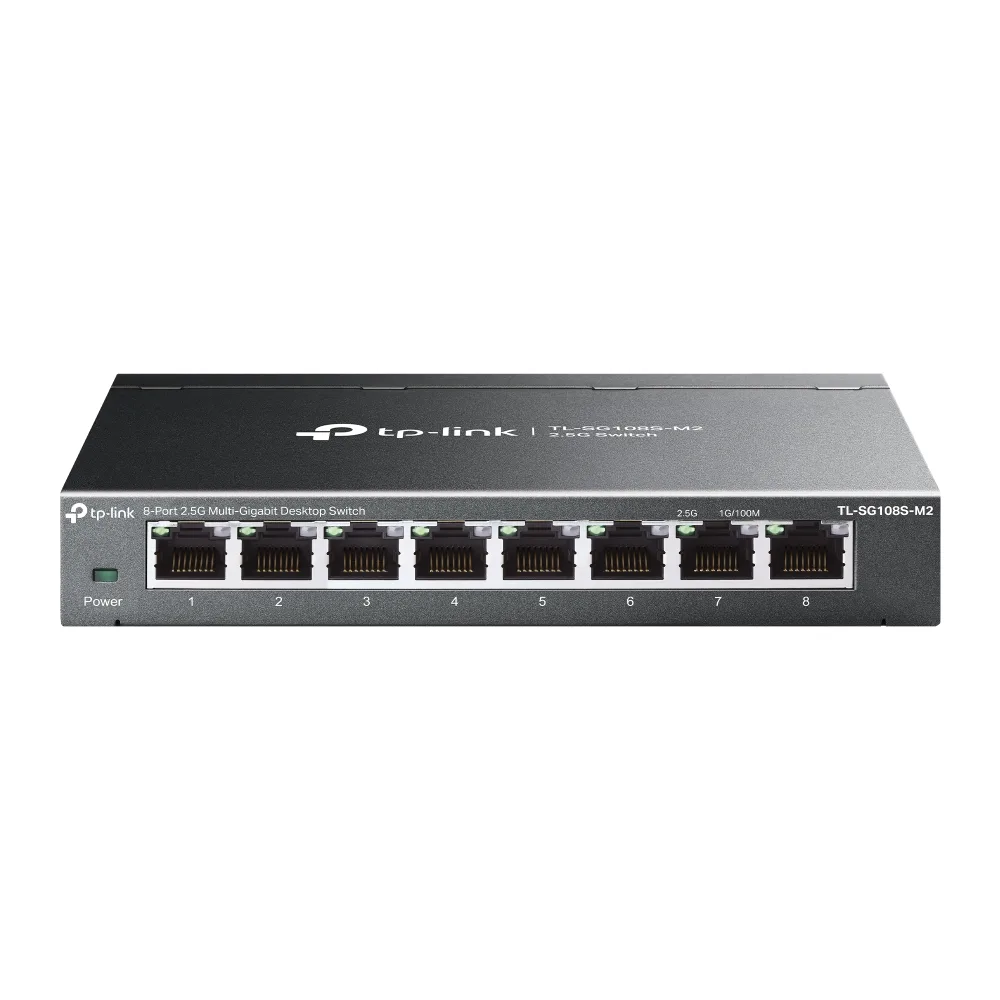

TP-Link TL-SG108S-M2 V1 - Switch - unmanaged - 8 x 100/1000/2.5G - desktop, wall-mountable

Description

Manufacturer Code: TL-SG108S-M2

Overview

TP-Link TL-SG108S-M2 V1 - Switch - unmanaged - 8 x 100/1000/2.5G - desktop, wall-mountable is available through DCS Components. It sits within the Hubs & Switches category.

Key product details

• Switch
• unmanaged
• 8 x 100/1000/2.5G
• desktop, wall-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4895252505153

Specifications

Management features

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)

Network

Networking standards	IEEE 802.3x, IEEE 802.1p, IEEE 802.3u, IEEE 802.3bz
10G support	No
Flow control support	Yes

Data transmission

Switching capacity	40 Gbit/s
Forwarding rate	29.8 Mpps
MAC address table	4000 entries

Security

IGMP snooping	Yes

Design

Rack mounting	No
Stackable	No
Form factor	Desktop
Product colour	Black
LED indicators	Power, Link

Power

Power source	DC
Power supply included	Yes
DC input voltage	12 V
Input current	1 A
Power consumption (max)	8.87 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Heat dissipation	30.158 BTU/h

Weight & dimensions

Width	158 mm
Depth	101 mm

Packaging content

User guide	Yes

Certificates

Certification	CE, FCC ,RoHS
