Manufacturer Code: SM5110-SR
Overview

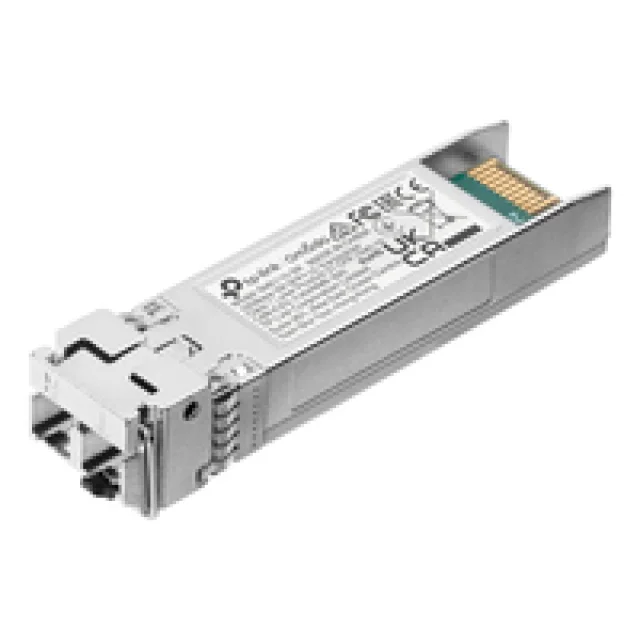

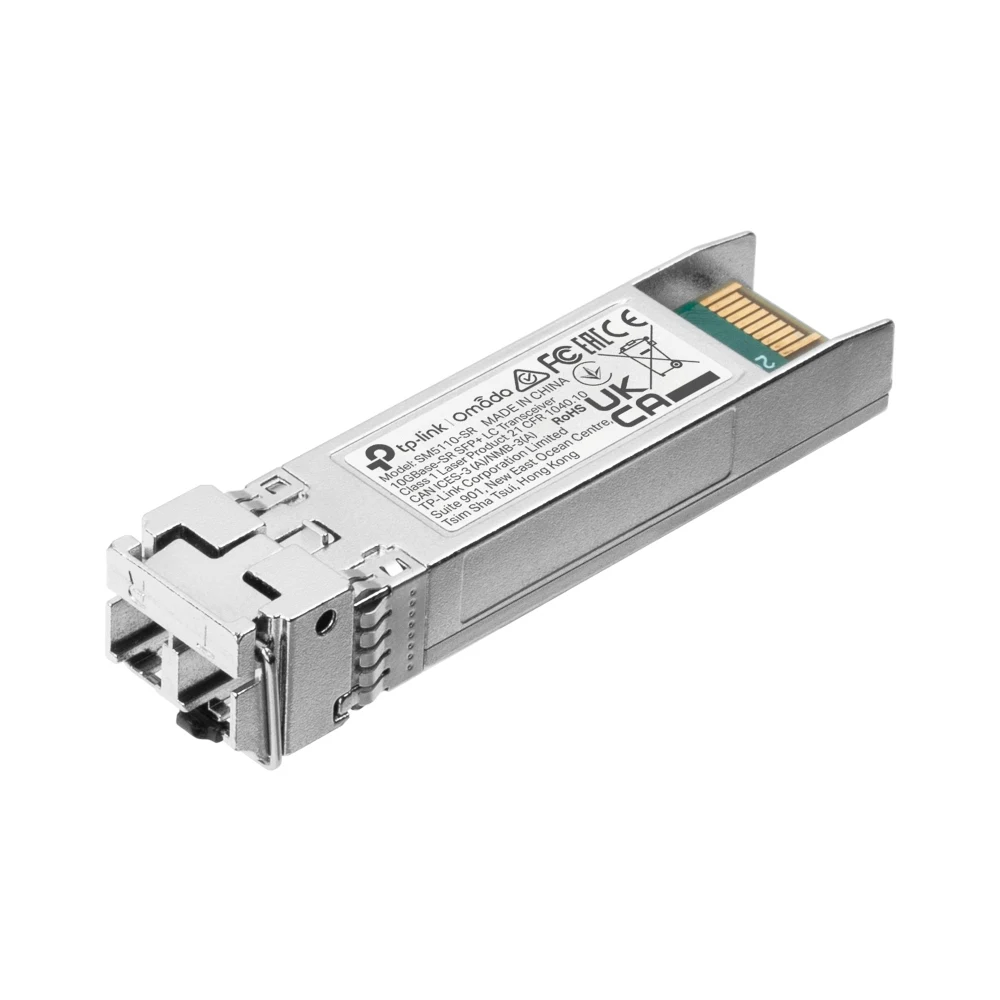

TP-Link TL-SM5110-SR - SFP+ transceiver module - 10GbE - 10GBase-SR - LC/UPC multi-mode - up to 300 m - 850 nm - for JetStream TL-SG3428X, TL-SG3452XP V1 is available through DCS Components. It sits within the Switch Transceivers (GBIC/SFP) category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 1210002612128
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Input voltage | 3.3 V |
|---|
| Certification | FCC, CE |
|---|
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 61.3 mm |
|---|---|
| Depth | 14.5 mm |
| Height | 12.2 mm |
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 220 mm |
|---|---|
| Package depth | 270 mm |
| Package height | 275 mm |
| Package weight | 60 g |
