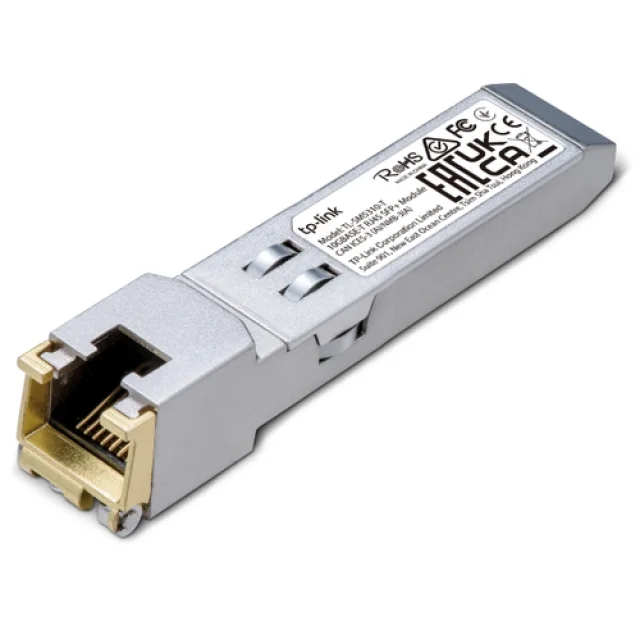

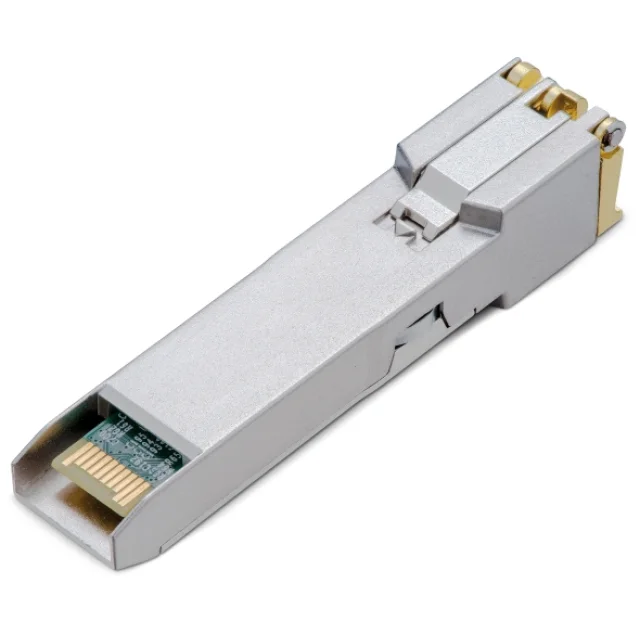

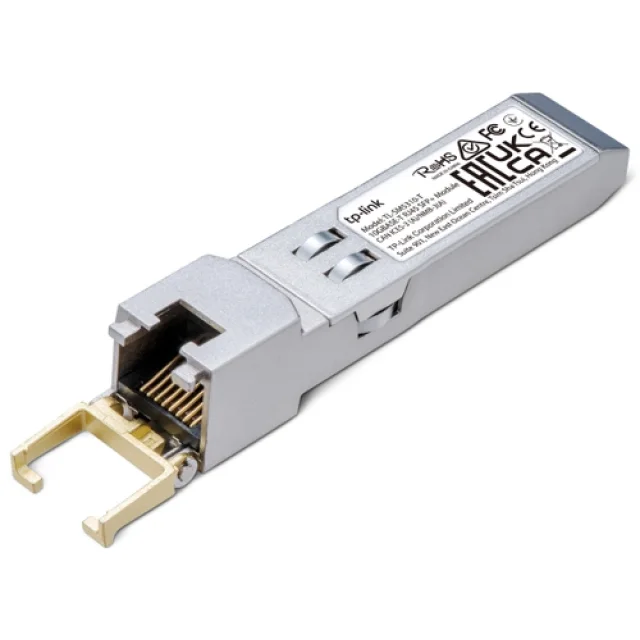

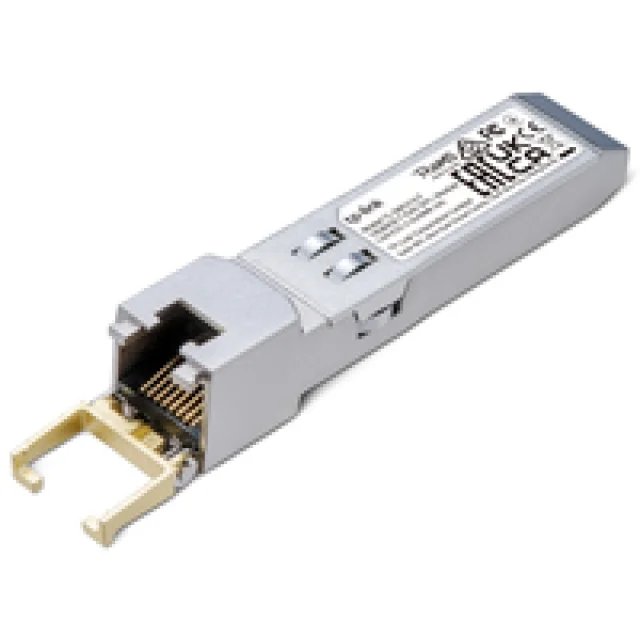

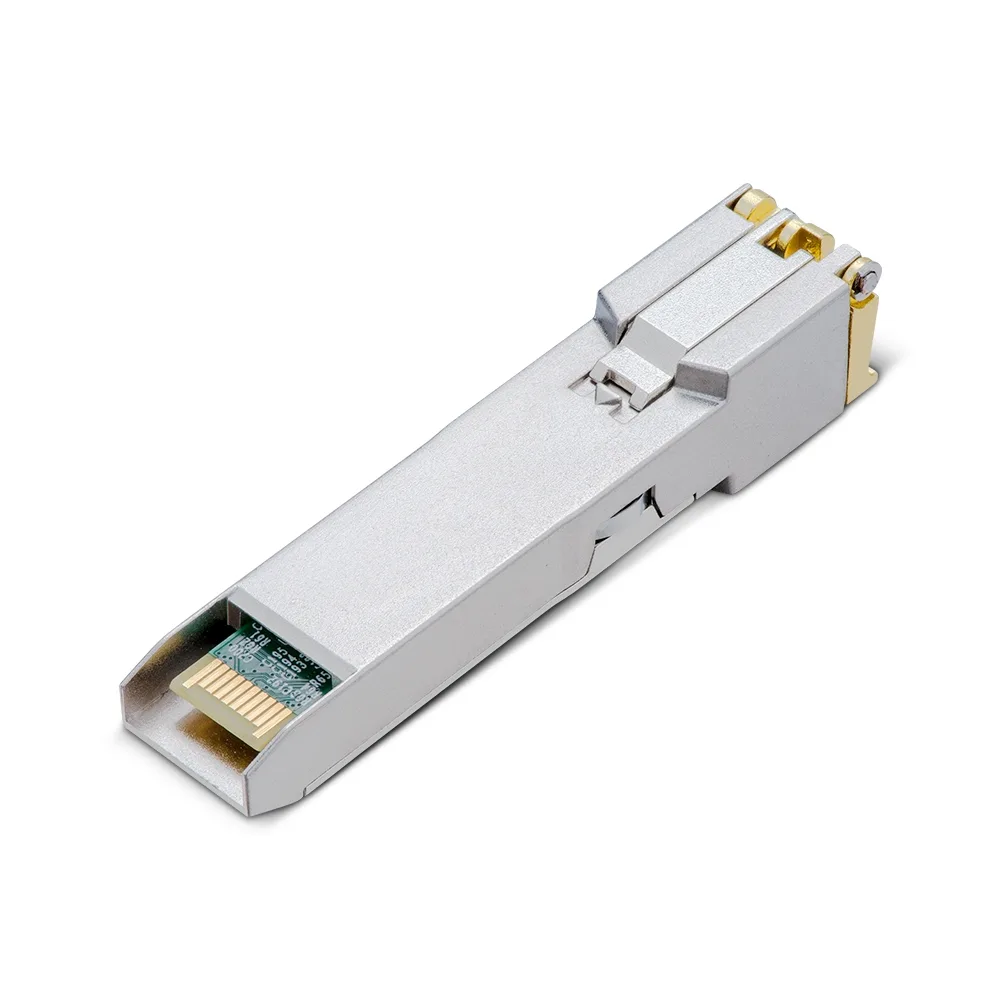

TP-Link TL-SM5310-T V1 - SFP+ transceiver module - 10GbE, 5GbE, 2.5GbE - 100Base-TX, 1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T - up to 30 m - for JetStream TL-SG3452XP V1

Description

Manufacturer Code: SM5310-T

Overview

TP-Link TL-SM5310-T V1 - SFP+ transceiver module - 10GbE, 5GbE, 2.5GbE - 100Base-TX, 1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T - up to 30 m - for JetStream TL-SG3452XP V1 is available through DCS Components. It sits within the Switch Transceivers (GBIC/SFP) category.

Key product details

• SFP+ transceiver module
• 10GbE, 5GbE, 2.5GbE
• 100Base-TX, 1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T
• up to 30 m
• for JetStream TL-SG3452XP V1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4897098681084

Specifications

Performance

SFP transceiver type	Copper
Maximum data transfer rate	10300 Mbit/s
Interface type	RJ-45
Maximum transfer distance	100 m
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Copper ethernet cabling technology	10GBASE

Features

Product colour	Silver
Housing material	Metal
Form factor	SFP+
Hot-Plug support	Yes
Easy to install	Yes

Power

Input voltage	3.3 V

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Sustainability

Sustainability compliance	Yes

Operational conditions

Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Packaging content

Quantity per pack	1 pc(s)

Packaging data

Package width	81.5 mm
Package depth	122.5 mm
Package height	38.5 mm
Package weight	2.87 kg

Logistics data

Harmonized System (HS) code	85369010
