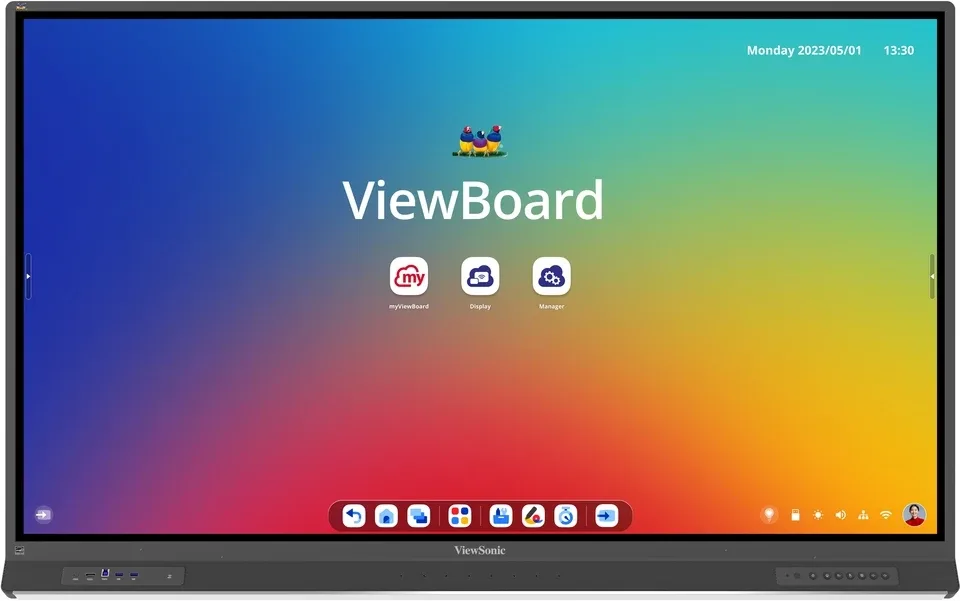

ViewSonic ViewBoard IFP7553 - 75" Diagonal Class IFP53 Series LED-backlit LCD display - interactive - with touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability - Android - 4K UHD (2160p) 3840 x 2160 - Direct LED

Description

21st Century Classroom Collaboration
ViewBoard® Interactive Displays
ViewSonic® ViewBoard® interactive displays deliver an immersive learning experience in any classroom environment. Featuring high-accuracy touchscreens, these interactive displays deliver an intuitive digital whiteboard experience for everyone from the youngest of students to the most experienced teachers.

Every ViewSonic ViewBoard interactive display includes complimentary access to myViewBoard software to deliver an unparalleled classroom experience. With this innovative hardware and software combination, teachers can engage students like never before with dynamic lesson creation, real-time collaboration, and immersive multimedia presentations.

Specifications

Display

Display diagonal	189.2 cm (74.5")
Display brightness	450 cd/m²
Display number of colours	1.07 billion colours
Display resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
LED backlighting type	Direct-LED
Native aspect ratio	16:9
Response time	6.5 ms
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Infrared
Number of simultaneous touchpoints	40
Touch system response time	5 ms
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Working area	1650.24 x 928.26 mm

Computer system

Operating system installed	Android
Operating system version	14
Built-in processor	Yes
Processor architecture	ARM Cortex A73 + ARM Cortex A53
Processor cores	8
User memory	128 GB
RAM capacity	8 GB
Graphics card family	ARM
Graphics card	Mali-G52

Audio

Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	20 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Built-in microphone	Yes
Number of microphone arrays	8

Projector

Built-in projector	No

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	3
USB 2.0 ports quantity	1
USB 2.0 Type-A hub ports quantity	1
HDMI ports quantity	4
USB Type-C ports quantity	3
USB Type-C DisplayPort Alternate Mode	Yes
HDMI version	2.1
HDMI output ports quantity	1
DisplayPort version	1.2
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone connectivity	3.5 mm
RS-232 ports	1

Ergonomics

Product colour	Black
VESA mounting	Yes
Panel mounting interface	800 x 400 mm
Wall mountable	Yes

Power

Power consumption (max)	474.8 W
Power consumption (typical)	216.04 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Width	1707 mm
Depth	118.4 mm
Height	1059.2 mm
Weight	51.7 kg

Packaging data

Package width	1900 mm
Package depth	225 mm
Package height	1160 mm
Package weight	63.9 kg
Quantity per pack	1 pc(s)

Packaging content

Manual	Yes
USB cable length	3 m
Cables included	AC, HDMI, USB
Remote control included	Yes
Mounting kit	Yes
Number of stylus pens	2

Logistics data

Pallet gross width	190.5 cm
Pallet gross length	114 cm
Pallet gross height	128 cm
Products per master (outer) case	1 pc(s)
