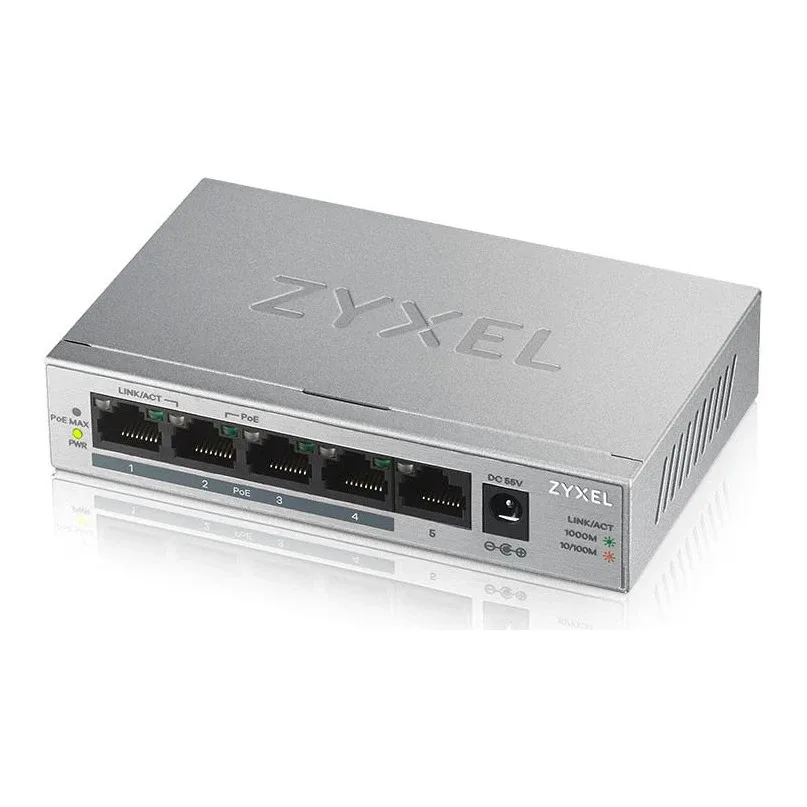

Zyxel GS1005HP - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 - desktop, wall-mountable - PoE (60 W)

Description

Meeting the price and power demands of small businesses
The Zyxel GS1005HP is equipped with 5 gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1005HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.

Smart PoE+ 802.3af/802.3at support
The GS1005HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.

Easy PoE Budget Management
The GS1005HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch.

Gigabit data transmission and smart features
Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

Fanless design
Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail.

Advanced Energy-Savings at Work
The GS1005HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Specifications

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes

Data transmission

Switching capacity	10 Gbit/s
MAC address table	2048 entries
Jumbo frames support	Yes
Jumbo frames	9216

Design

Rack mounting	No
Product colour	Silver
LED indicators	Activity, Link, PoE, Power

Power

AC input voltage	100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	60 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	171 mm
Depth	75 mm
Height	26 mm
Weight	235 g

Packaging content

Quick start guide	Yes

Packaging data

Package type	Box
Package width	210 mm
Package depth	132 mm
Package height	78 mm
Package weight	834 g

Certificates

Certification	CE, FCC, BSMI, EAC

Logistics data

Harmonized System (HS) code	85176990
