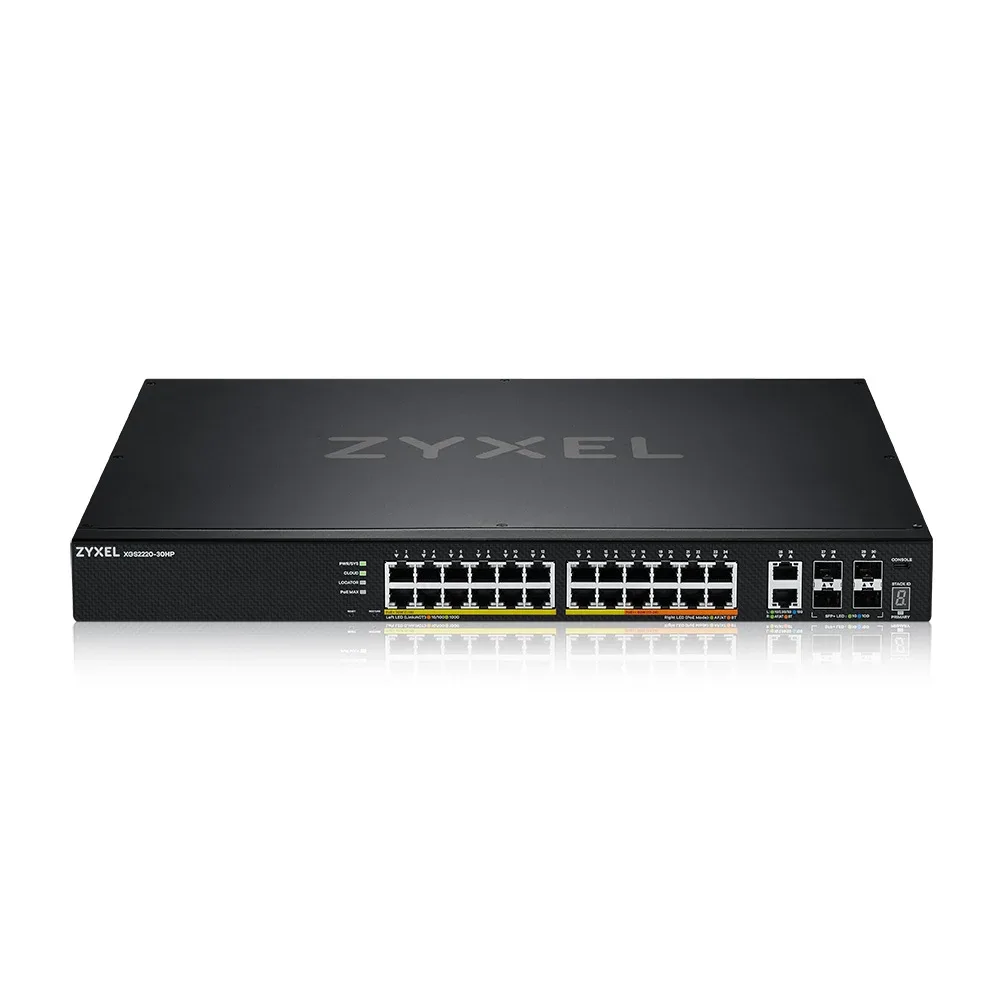

Zyxel XGS2220 Series XGS2220-30HP - Switch - 24-port GbE L3 access, with 6 10G uplink - L3 - Managed - 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 2 x 1/2.5/5/10 (PoE++) + 4 x 1 Gigabit / 10 Gigabit SFP+ - desktop, rack-mountable - PoE++ (400 W)

Description

Nebula Cloud-managed Layer 3 Enterprise Switch
The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement.

Flexible 10G For Converged Networking Applications
On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure.

Multiple Power Budget options
PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points.

Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio.

Nebula, Manage It Your Way!
The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.

Dedicated Networked AV Mode
The XGS2220 series includes a tailor-made networked AV mode when used in standalone mode. You can switch interfaces to simplify the installation of AVoIP with an intuitive wizard that prompts high level requirements for this type of network infrastructure; leveraging from AI intelligence, the switch is then able to remove the complexity by applying all the necessary details to set up a professional AVoIP deployment in minutes.

When deployed in Networked AV mode the switch gives you a dedicated dashboard allowing quick access to the key AV network elements such as IGMP and IP information as well as fast access to configuration functions often associated with AVoIP deployments.

Specifications

Management features

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity	2
Installed SFP+ modules quantity	4

Network

Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Routing entries	64

Data transmission

Switching capacity	168 Gbit/s
Forwarding rate	125 Mpps
MAC address table	32000 entries
Static route	Yes
Jumbo frames support	Yes
Packet buffer memory	2 MB

Security

DHCP features	DHCP relay, DHCP server
IGMP snooping	Yes
IGMP proxy	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
BPDU filtering/protection	Yes
Authentication type	IEEE 802.1x, RADIUS, TACACS+

Multicast features

Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1/v2

Protocols

GARP VLAN Registration Protocol (GVRP)	Yes

Design

Rack mounting	Yes
Product colour	Black
LED indicators	Yes

Performance

Internal memory	1024 MB
Flash memory	64 MB
Mean time between failures (MTBF)	268.305 h

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (max)	477 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	26
Total Power over Ethernet (PoE) budget	400 W

Operational conditions

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	1626.57 BTU/h

Weight & dimensions

Width	441 mm
Depth	330 mm
Height	44 mm
Weight	4.35 kg

Packaging data

Package width	580 mm
Package depth	503 mm
Package height	95 mm
Package weight	5.77 kg

Certificates

Compliance certificates	RoHS, Federal Communications Commission (FCC), Low Voltage Directive (LVD), CE
